Posted in Snow/ ATV/ Water Craft Trailers.

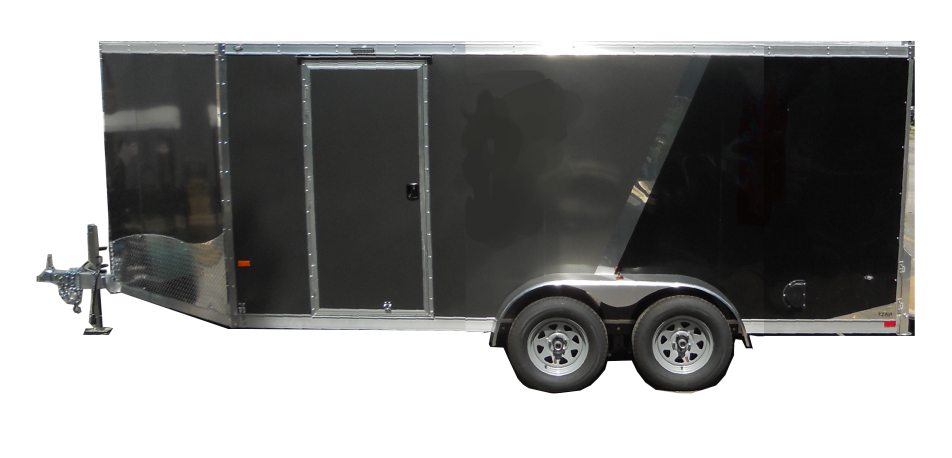

Neo 7' (NASF) Flat Top Snow Trailer

 NEO





7' Flat Top Trailer

STANDARD FEATURES

  • Size: 7 X16 TA (G.V.W.R. = 2-3500# / Int. Hgt.= 73")
  • Size: 7 X18 TA (G.V.W.R. = 2-3500# / Int. Hgt.= 73")
  • Size: 7 X20 TA (G.V.W.R. = 2-3500# / Int. Hgt.= 73")
  • Size: 7 X22 TA (G.V.W.R. = 2-3500# / Int. Hgt.= 73")
  • Size: 7 X24 TA (G.V.W.R. = 2-3500# / Int. Hgt.= 73")
  • Size: 7 X26 TA (G.V.W.R. = 2-3500# / Int. Hgt.= 73")
  • Size: 7 X28 TA (G.V.W.R. = 2-3500# / Int. Hgt.= 73")

Standard Features (All Models)

  • 1pc Aluminum Flat Top Roof W/4' V-Nose
  • .030 Bonded Smooth Exterior SCREWLESS
  • 3500lbs Spring Axles
  • 15" Radial Tires on Silver Wheels
  • Triple Tube Tongue W/ 2'' Coupler ( 7000lbs )
  • Front Ramp Door W / Spring Assist (cs)
  • Rear Ramp Door W/ Spring Assist
  • Nxp ramp door latch system
  • Tongue Jack
  • Aluminum fenders
  • Aluminum ATP Stoneguard
  • 3/4'' Marine Grade Floor
  • 12'' 3/8'' Marine Grade Kickplate
  • 2 - 12 Volt Dome Lights W/Switch
  • 16'' O/C Wall Post & Celing
  • 24'' O/C Crossmembers
  • 24" ATP Eagle Stoneguard
  • Ski Guide On Front Ramp Door
  • LED Exterior Lighting
  • Flushlock & Piano Hinge Door
  • 2'x4' Tube Main Frame 22' Less/2'x5' Double Halllow 24' Larger
  • Stainless Steel Door Hold Back
  • Side Door Kick
  • ProFlaps off Front & Rear Ramp Doors
  • ALL Tube Frame

SPECIAL PACKAGES & OPTIONS

Options:

  • Torsion axle upgrade w/15" radial tire ilo of standard
  • 15" radial spare tire w/silver wheel
  • 15" aluminum wheel upgrade
  • 12v Dome Light Extra
  • Roof vent - manual
  • Plastic side wall vents (3" round hole) black and white pr
  • Salem wall vent
  • Heavy duty D-rings
  • Medium duty D-rings
  • Swing down stabilizer jackspair
  • 16" oc cross members ilo of std. 24"pfob=
  • 16" oc wall post ilo of std. 24"pfob=
  • White vinyl ceiling linerpfob=
  • White vinyl walls ilo of std.pfob
  • 14'' X 14'' Fuel Door
  • 2-Tone Color
  • 4-ft Helmet Cabinet
  • Insulated Walls =
  • Insulated Ceiling =
  • Pro Jacks
  • (2) L.E.D. Light Pkg. Upgrade =
  • (4) L.E.D. Light Pkg. Upgrade =
  • Sport Multi Point Tie Down System =  ea
  • 12v Battery on Board =



Prices and Specs Subject to Change without notice
